Technical parameters



Parameter Value
Sensor resolution1280×1024 px - 2nd generation
Pixel size12µm
NETD – sensor sensitivity<15mK
Refresh rate50Hz
Lens50mm / F1.0
Field of view14,7° x 11,7°
Digital magnification2x-24x
Eye relief50mm
Eyepiece diameter8mm
Diopter adjustment-5 - +5
Optical zoom3x-9x
Detection distance3100m
Display typeAMOLED 1.03'' (26,3mm)
Display resolution2560x2560px
Battery type1st internal (4000mAh) + 2nd replaceable 18650
Battery life6 h (internal + external)
Wi-Fi / appYes
Photo / videoYes
Audio recordingYes
Ballistic calculationYes
Laser rangefinderYes, integrated do 1200 m
Video playback directly on deviceYes
Recoil-activated videoYes
Connection typeUSB-C
Storage64 GB
Protection ratingIP67
Tube diameter30mm

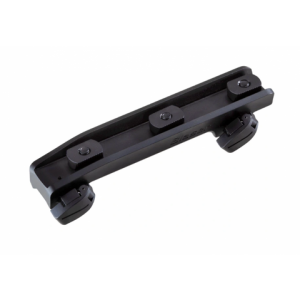

MountingZEISS rail
Weight1300g
Dimensions365x90x68mm

Product details

Reality+ AI – artificial intelligence algorithm
Reality+ AI – artificial intelligence algorithm

The newly developed Reality+ AI image processing algorithm effectively suppresses noise caused by ambient temperature, significantly improving contrast and sharpness of details. By using artificial intelligence, the system can optimize the image in real time and ensure clear, sharp and detailed images even in challenging conditions.

Newly developed 2nd generation sensor – premium quality
Newly developed 2nd generation sensor – premium quality

ACE thermal imaging sights are equipped with our newly developed 2nd generation sensor with a resolution from 384 × 288 px to 1280 × 1024 px and a sensitivity of less than 15 mK . This sensor ensures uncompromising performance in every situation.

Improved battery life
Improved battery life

The ACE is equipped with a dual battery system that includes a built-in 4,000mAh battery and an additional replaceable 18650 battery. This system is designed to reliably meet the demands of long standby and long-term use.

Vision+ system
Vision+ system

The new Vision+ system with a circular AMOLED display with a diagonal of 1.03" and a resolution of 2560 × 2560 px . This system offers optical zoom for direct optical image magnification, which, unlike traditional digital zoom, eliminates blur, distortion and image noise. Enjoy an immersive hunting experience.

Integrated laser rangefinder and ballistic calculator
Integrated laser rangefinder and ballistic calculator

ACE has an integrated laser rangefinder with a range of up to 1,200 meters . Thanks to its precise alignment to the optical axis, it ensures extremely accurate distance measurement. At the same time, it maintains an elegant design that every user will appreciate.

NOCPIX application
NOCPIX application

Professional yet simple NOCPIX application
brings completely new possibilities for hunters. Thanks to the Wi-Fi connection of the device with your smartphone, you can easily update the firmware, download and view photos or videos. You can review your experiences immediately after the hunt - even in a dense forest without a mobile signal. The development of the application is constantly continuing and you can already look forward to many new features.

×

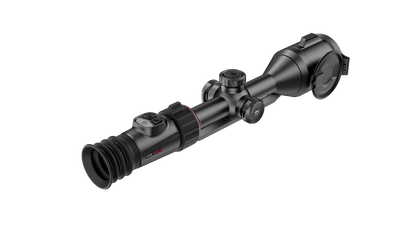

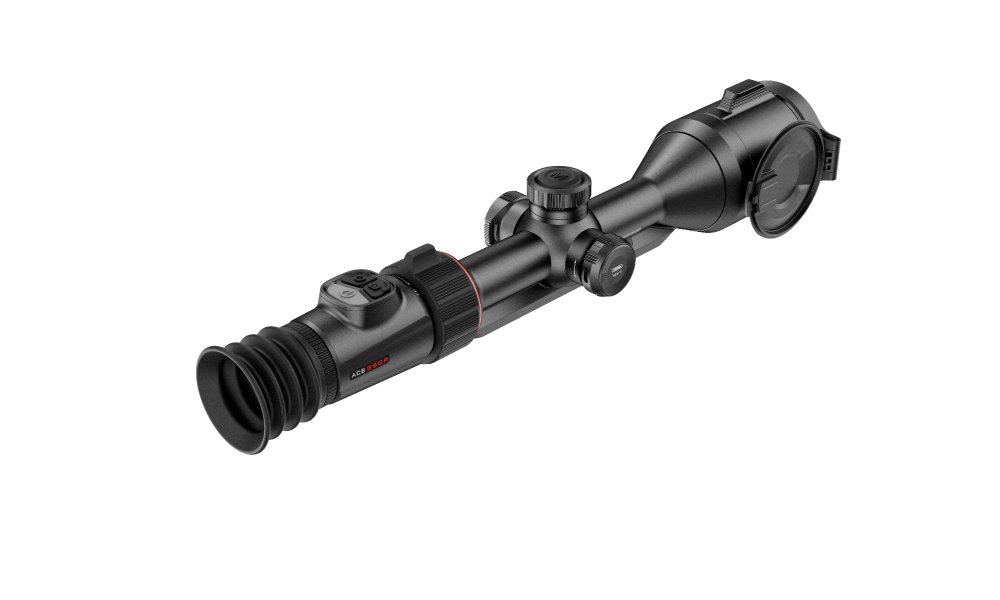

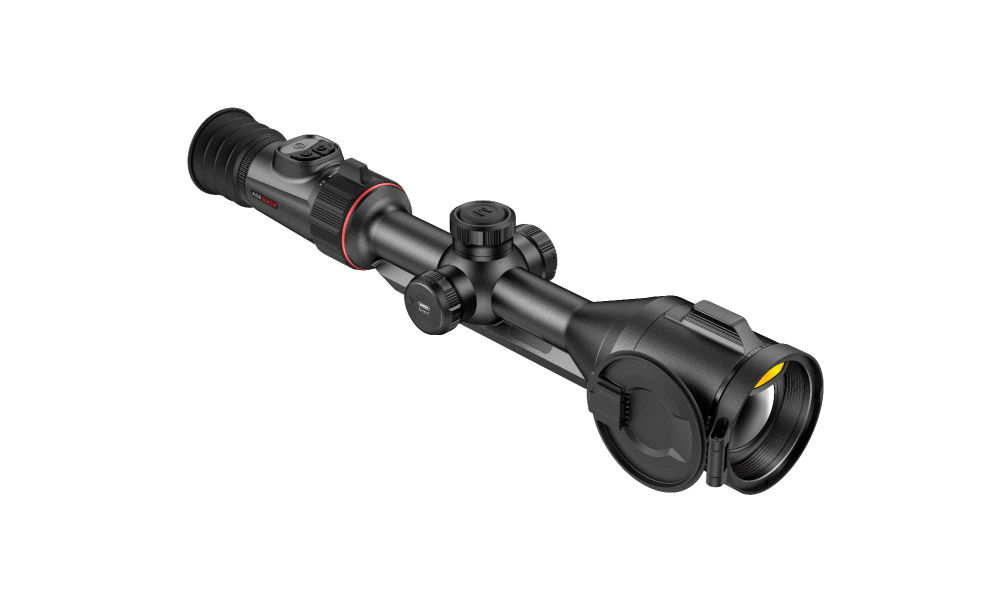

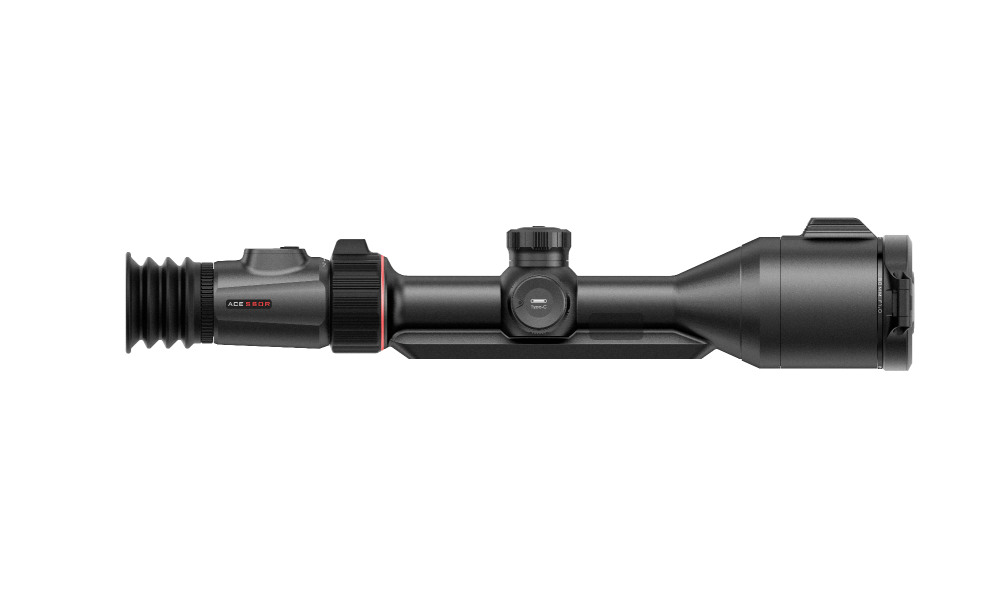

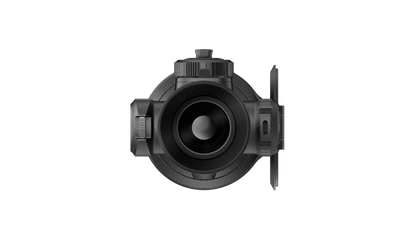

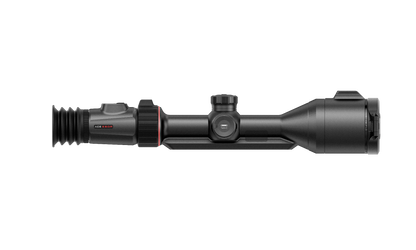

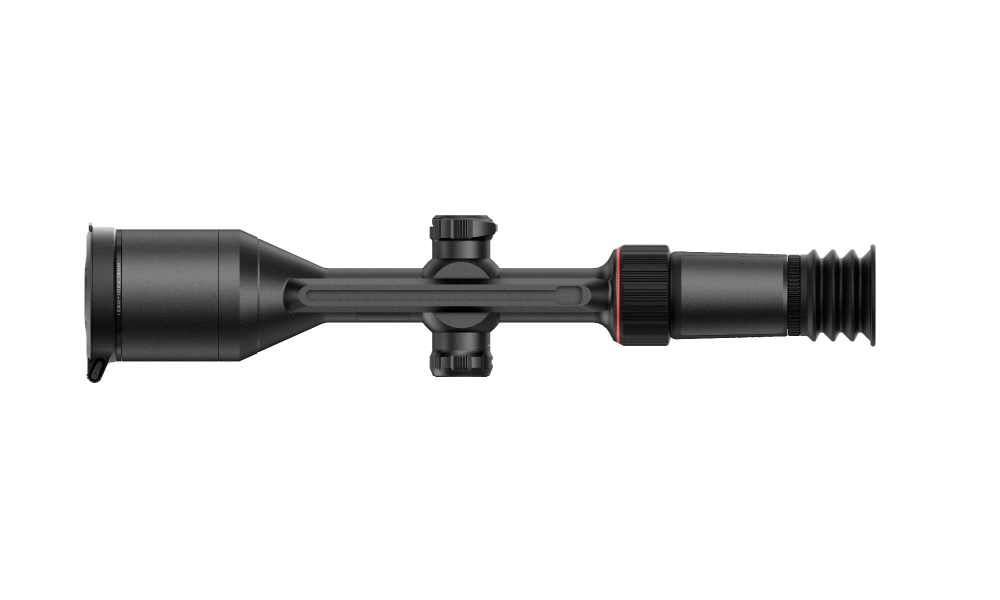

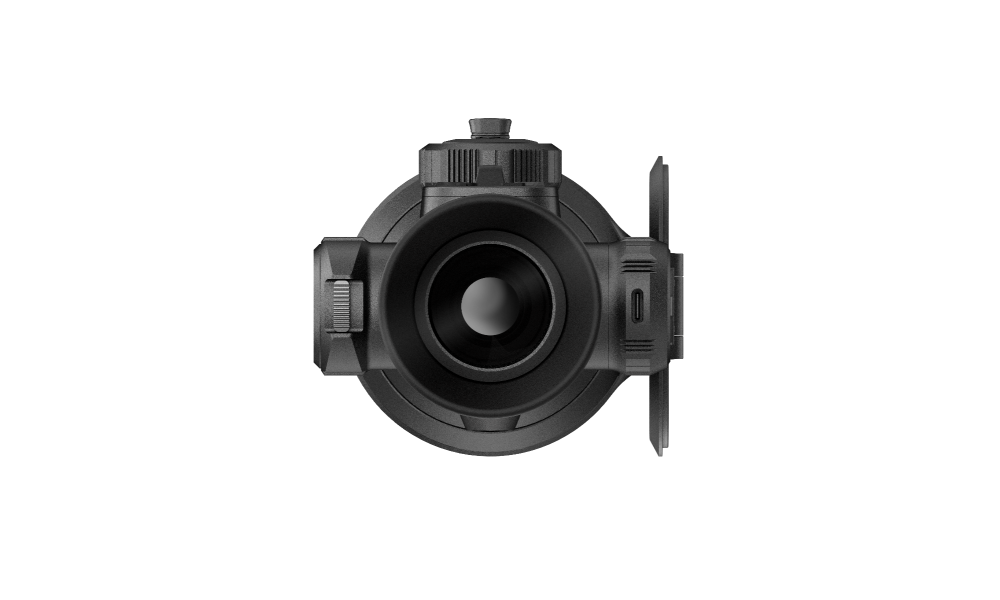

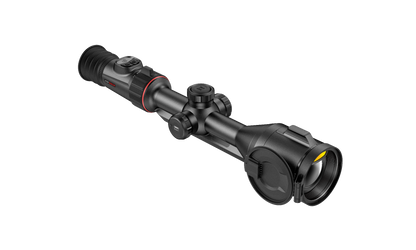

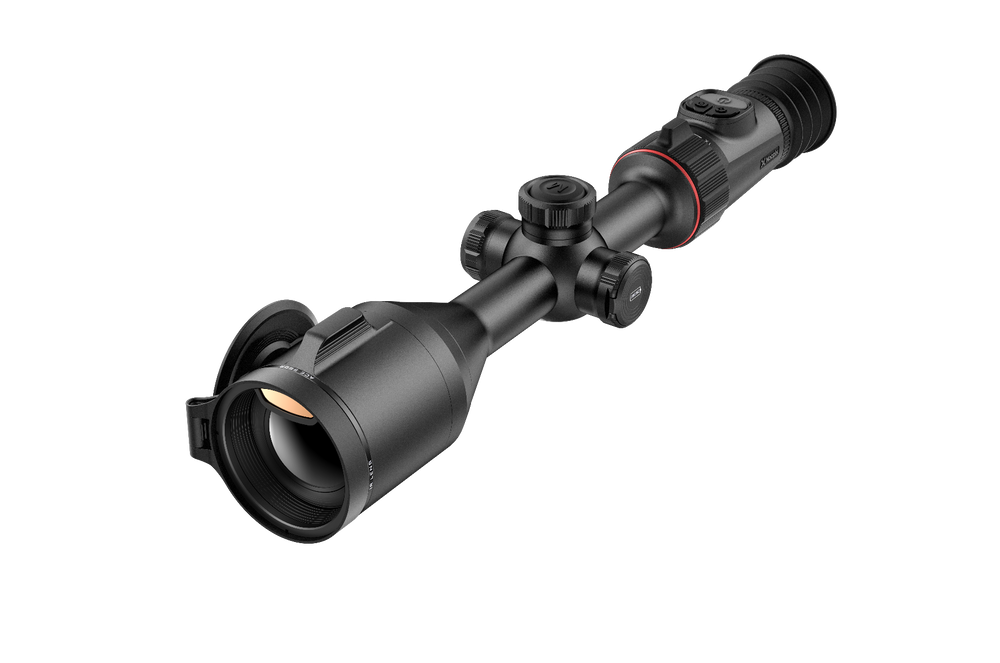

ACE S60R RAIL
